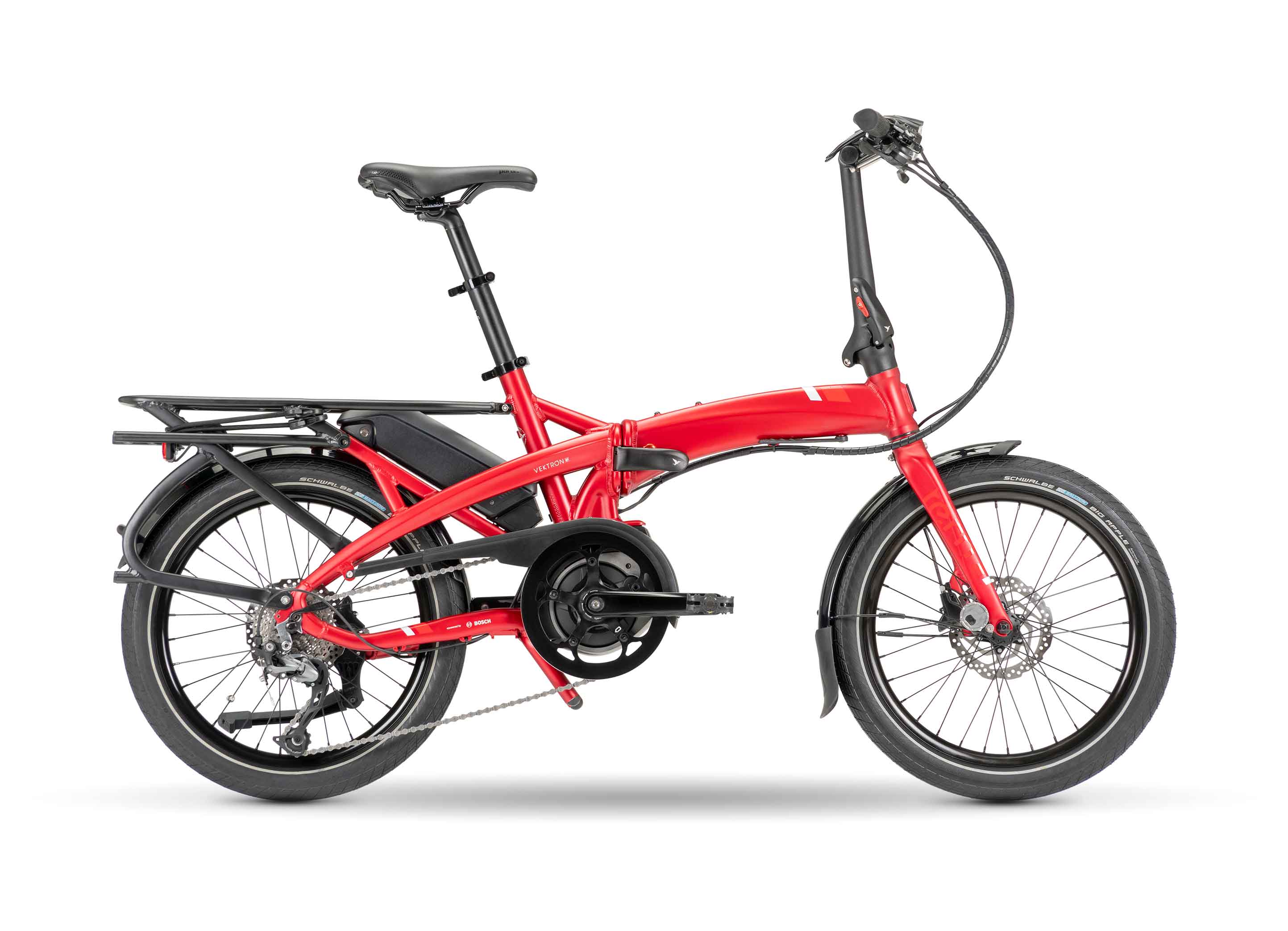

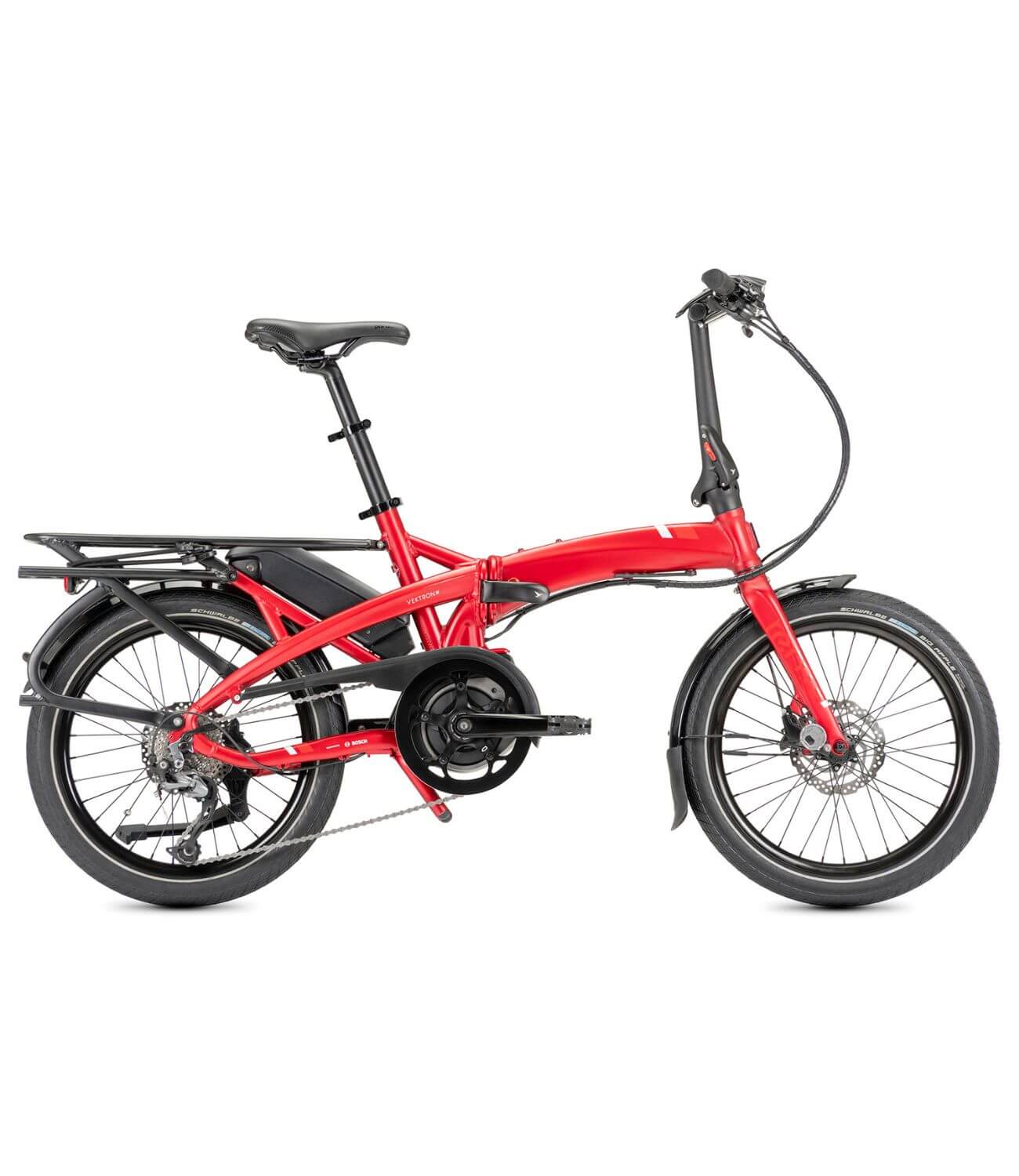

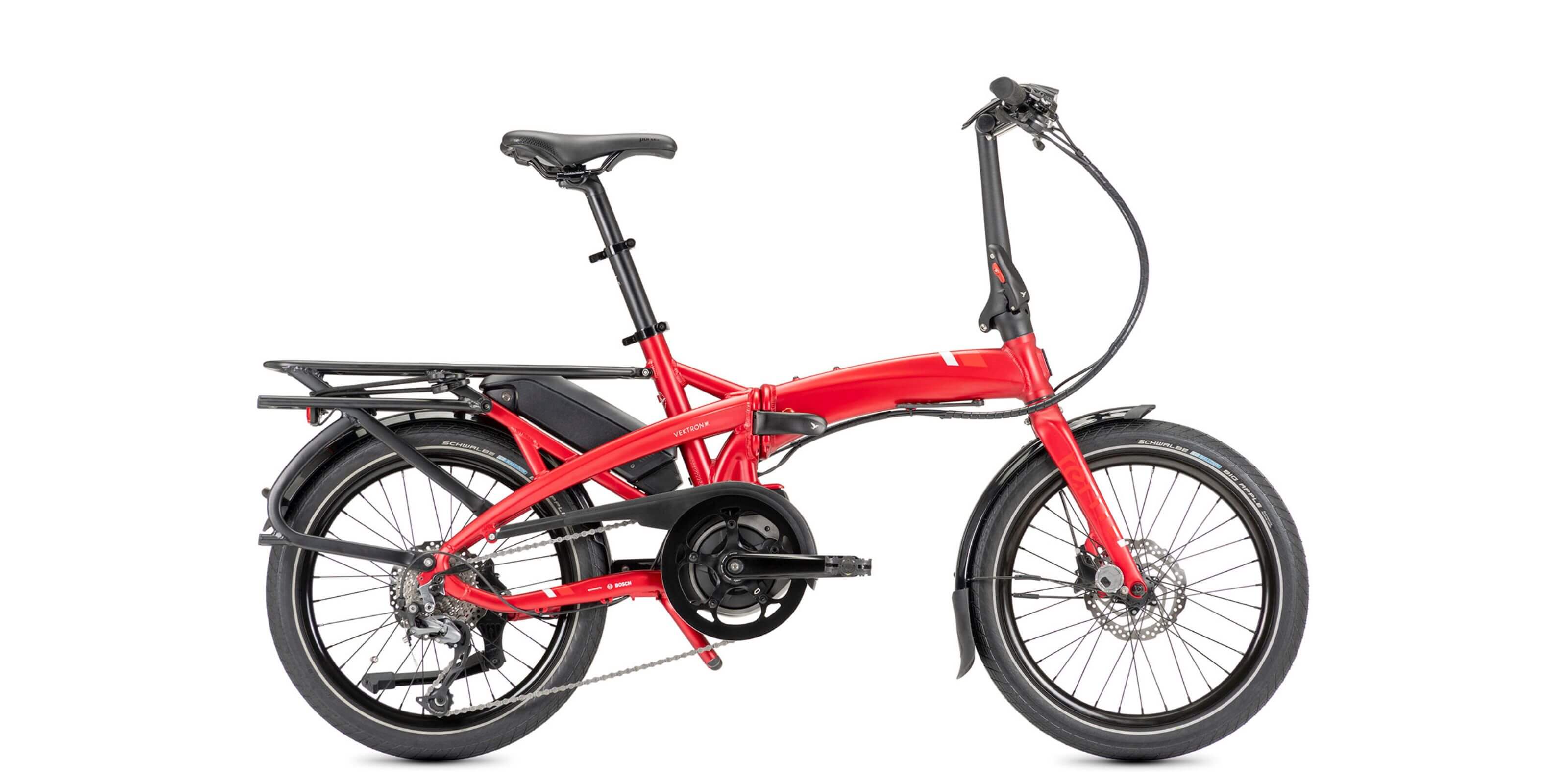

Tern Vektron Q9
Currently Out Of Stock - Contact Us For Next Availability
The Tern Vektron Q9 is an evolution of the original Vektron. The folks at Tern have kept an open mind when digesting user feedback from their debut Vektron. The result has been the subtle optimization of an already competent folding electric bike. Not everyone needs the extra power found in the Vektron S10; a bike that is far better suited for San Fransisco and it's many hills.

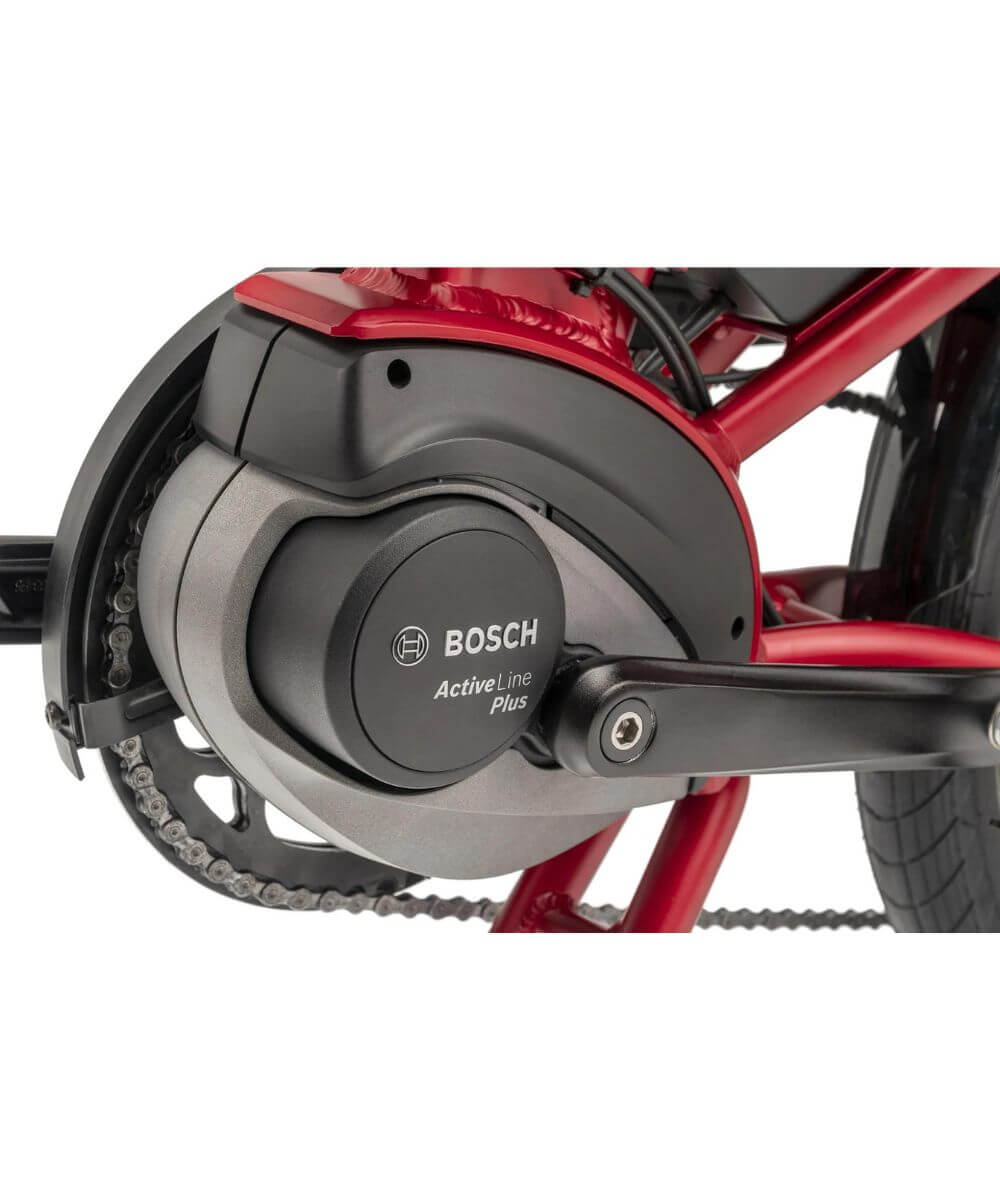

The Bosch Active Line packs enough punch to keep the Vektron purring right up a steep incline under a full load of cargo. The frame has also been redesigned to have the battery lay more flat under the rack, allowing you to maximize the longer carrier rack.
The last notable upgrade in the model is the Atlas Rack itself. Not only does it have a higher weight capacity, but they've adapted the design from their GSD model, allowing you to stow the Vektron upright to save space.
Contact one of our electric bike experts today for more information on the Tern Vektron Q9.
| GENERAL | |
|---|---|
| Color(s) | Blue, Black |
| Wheel Size | 20" |
| Frame Sizes | One-Size |
| Weight | 48.2 Lb / 21.9 Kg |
| ELECTRIC ASSIST | |

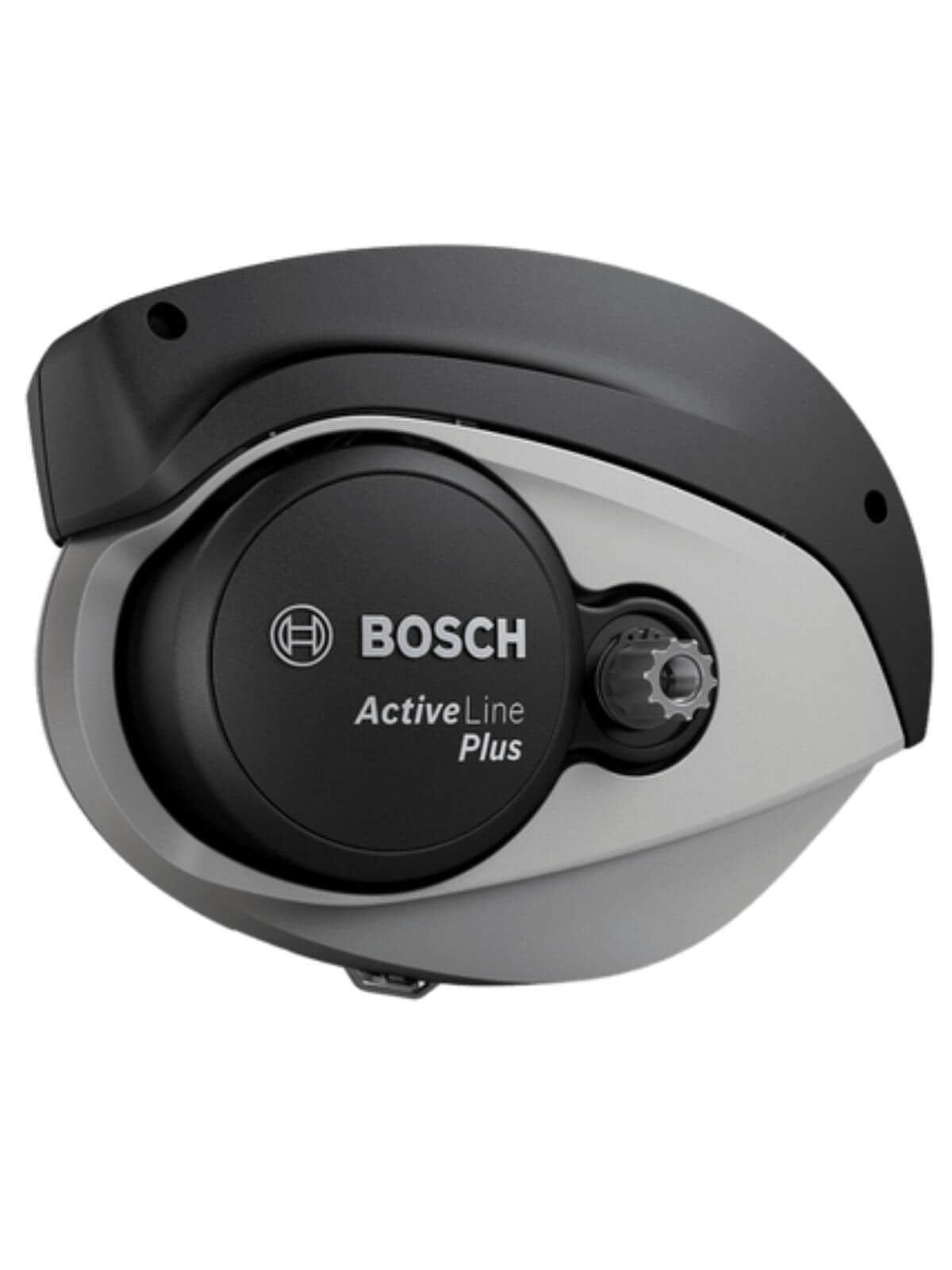

| Motor | Bosch Active |

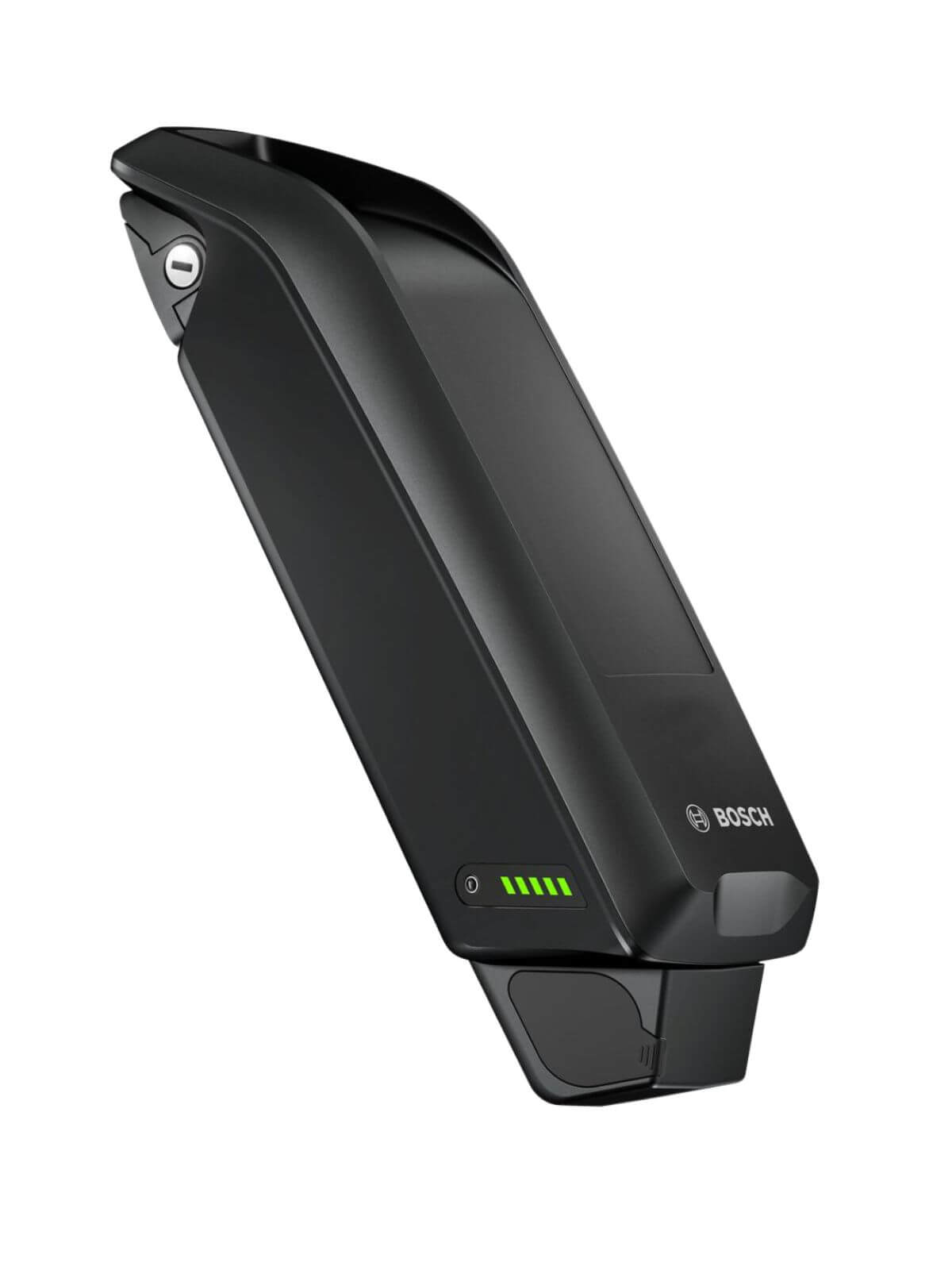

| Battery | Bosch PowerPack 400 Wh |

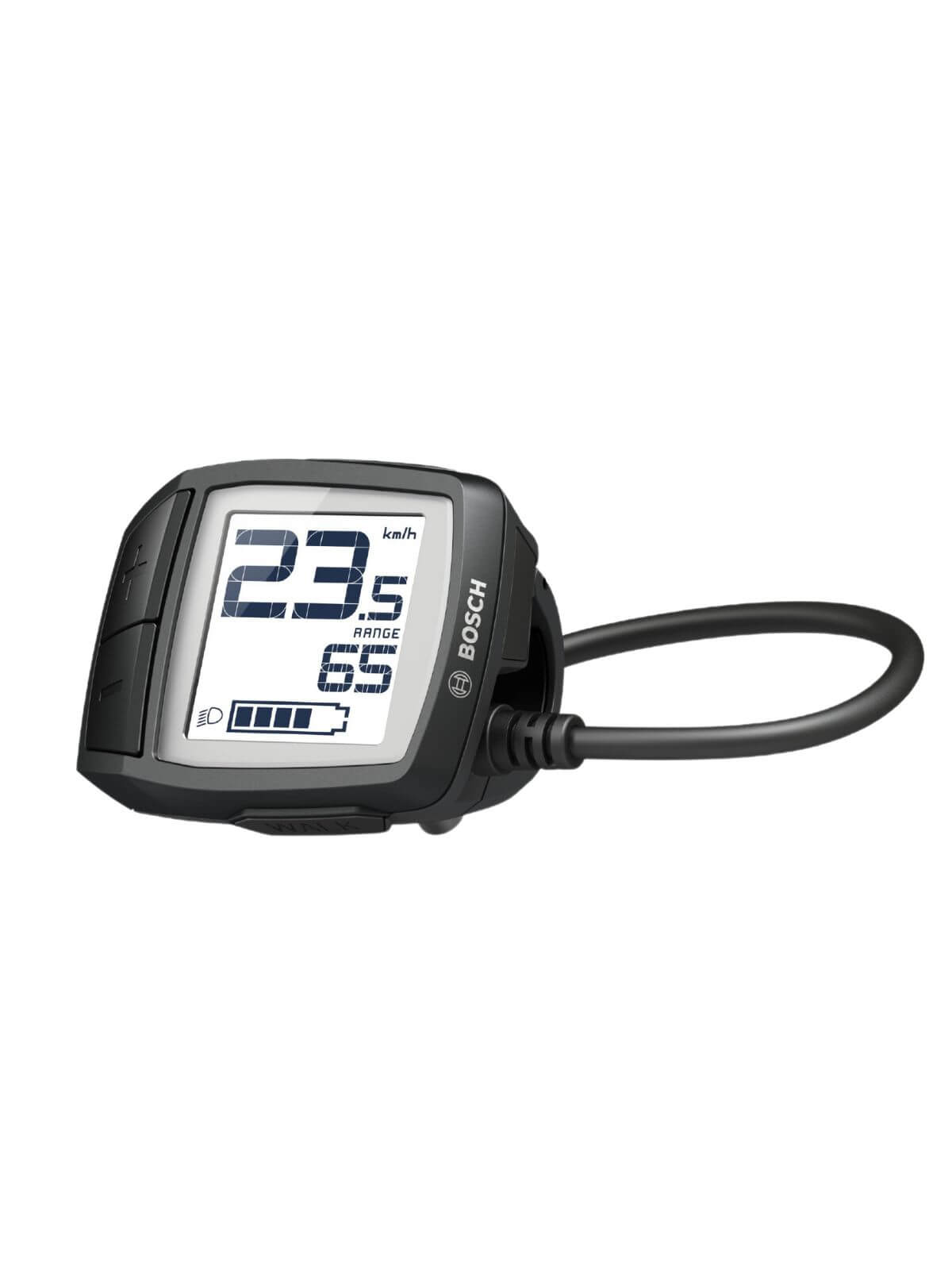

| Display | Bosch Purion |
| Assist Levels | 4 |
| Range (*approx) | 100 Km's / 62 Miles |
| Maximum Assisted Speed | 32 Kph / 20 Mph |
| TRANSMISSION | |
| Speeds | 9 |
| Shifter(s) | Shimano Alivio |
| Rear Derailleur | Shimano Alivio Shadow |
| Internal Hub | Shimano Disc |
| Cassette / Sprocket | 11-32T |
| Chain / Belt | Chain |
| Crankset | Vektron custom, forged 6061-AL crankarm |
| Pedals | MKS EZY |
| FRAME | |
| Frame | Vektron G2 Frame |
| Fork | Tern Tarsus, 6061-Al, hydroformed |
| Shock | X |
| WHEELS & BRAKES | |
| Tires | Schwalbe Big Apple, 55-406, puncture protection, Reflex |
| Rims | Kinetix Comp, for disc |
| Front Brake | Shimano, hydraulic disc |
| Rear Brake | Shimano, hydraulic disc |
| COCKPIT | |
| Handlebar | Flat bar, 6061-AL, Tern Andros adapted |
| Stem | Tern Andros, adjustable |
| Grips | Velo ergonomic, lock-on |
| Saddle | Tern Porter, patented GripPad design |
| Seatpost | Tern Telescopic, 34.9mm Lite 2014-AL |
| ACCESSORIES | |
| Bell | ✓ |
| Chainguard | ✓ |
| Kickstand | ✓ |
| Pannier Rack | Atlas Rack, integrated 8 point mounting |
| Front Light | Tern Valo Direct, integrated, 41 lux/150 lumens |
| Rear Light | Herrmans H-Trace, for eBike |
| Fenders | ✓ |
| Options | O |
