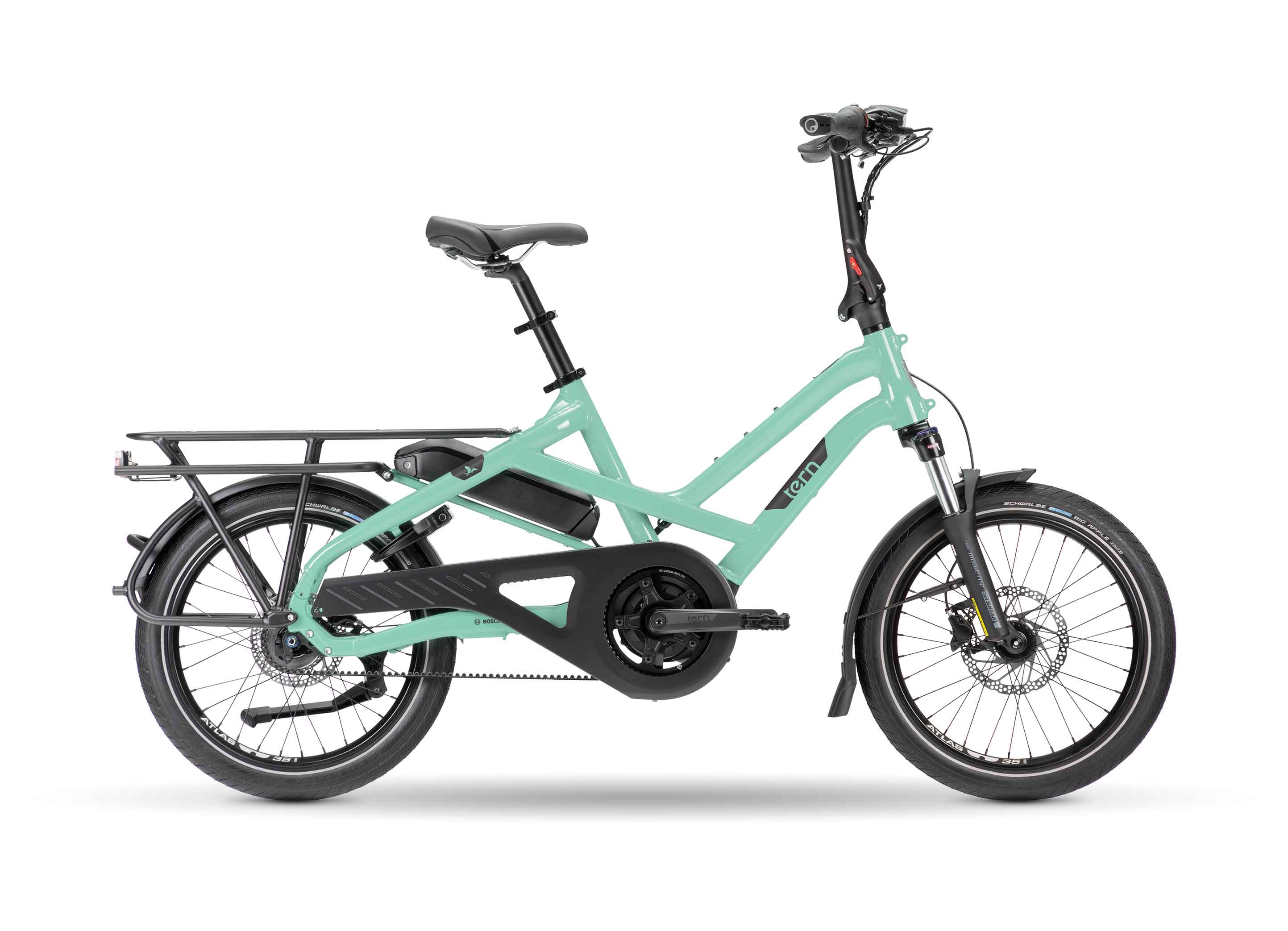

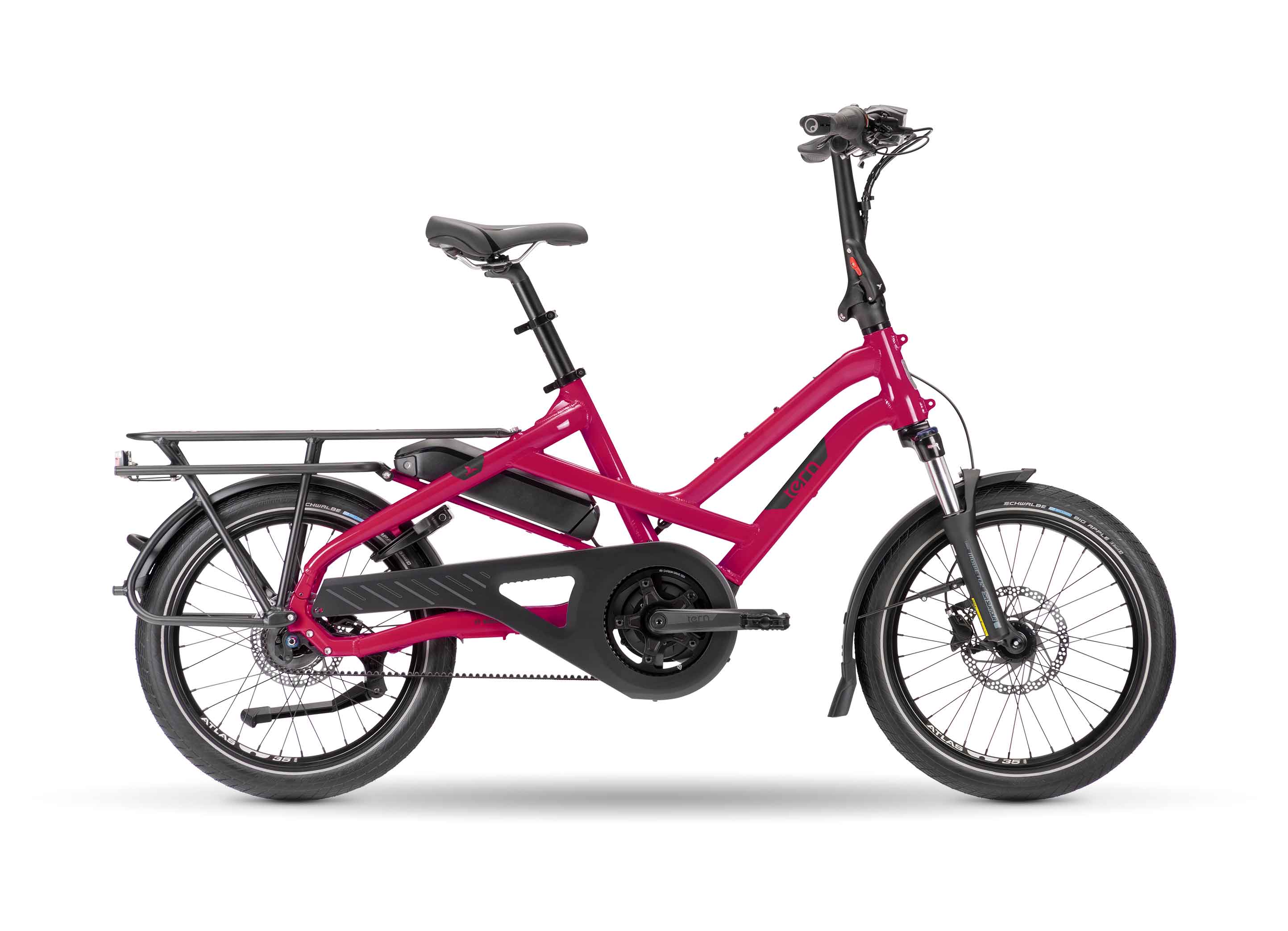

Tern HSD P5i

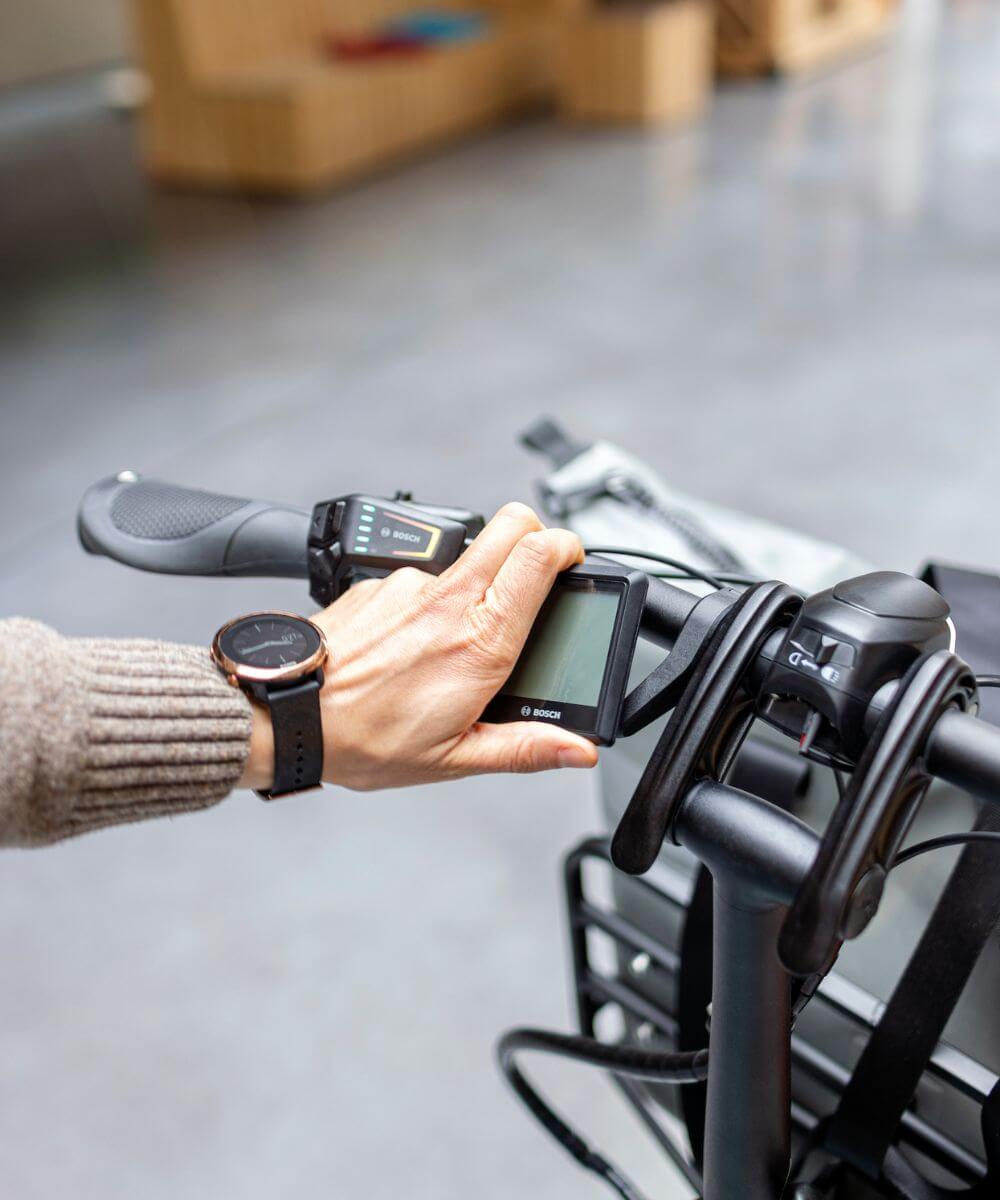

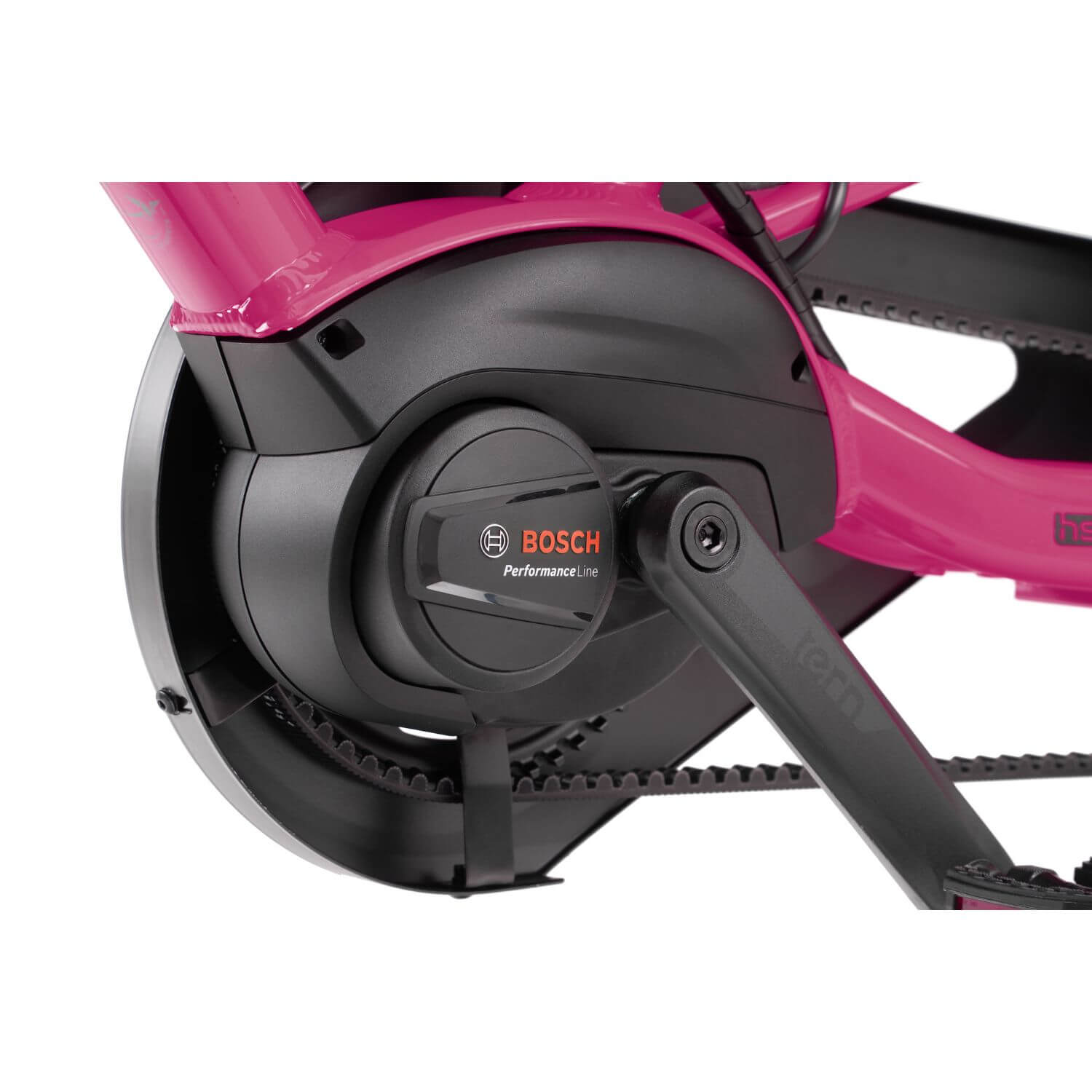

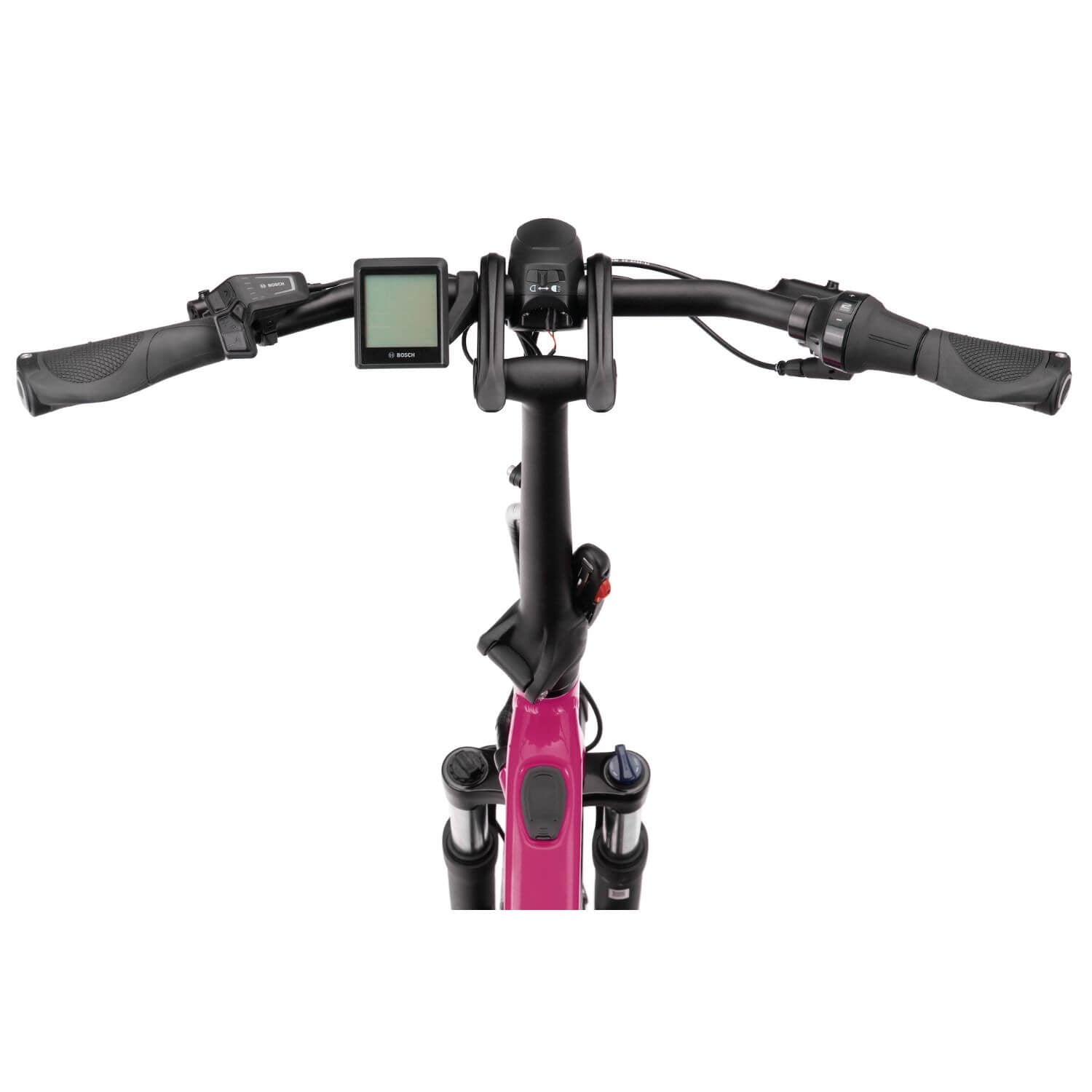

For a small family running daycare drop-offs, grocery runs, and after-school pickups, the Tern HSD P5i is built to replace a second car trip, not just a bike ride. Its Bosch Performance Line motor delivers up to 75 Nm of torque and boosts pedaling power by as much as 340%, so a fully loaded bike, child included, climbs hills and pulls away from stops without a struggle. The Bosch Smart System ties the whole ride together: over-the-air updates, ride customization, and a built-in eBike Lock, all managed through the compact Purion 200 display so the cockpit stays clutter-free.
Underneath the everyday convenience is real hauling capacity. The HSD P5i is rated to a maximum gross vehicle weight of 190 kg (419 lb), with the rear rack alone carrying up to 80 kg (176 lb), and the whole system is third-party tested and certified to UL 2849 for the complete e-bike, plus EN 17860 for the frame and fork at that 190 kg rating. That matters more here than on a typical commuter bike: when the cargo is a child, "tested and certified" isn't a nice-to-have. Power gets to the rear wheel through a Shimano Nexus 5 internally geared hub with a 263% gear range and a silent, virtually maintenance-free Gates Carbon Drive belt, so there's no greasy chain to worry about at drop-off.
Fit and comfort scale with the family, too. The cockpit adjusts without tools to suit riders from 150-200 cm (4'11"-6'7") tall and up to 130 kg (287 lb), which means the same bike works whether one parent is 5'2" and the other is 6'2". A custom Suntour suspension fork smooths out potholes and curb cuts, and Magura hydraulic disc brakes with 180 mm rotors give confident, predictable stopping power when there's precious cargo on board. Tern's longer wheelbase and low center of gravity keep the bike planted and stable at speed or under load, rather than twitchy the way a repurposed commuter bike can feel with a child seat bolted on.
The value case is straightforward once the specs are on the table: a cheaper e-bike might match the price of the HSD P5i's motor alone, but it won't carry a certified 190 kg, won't run a belt drive that skips years of chain maintenance, and won't offer Bosch's dealer and service network for parts and support down the road. That's the gap between a bike that happens to have a battery and one engineered from the ground up to be a car-replacement cargo bike.

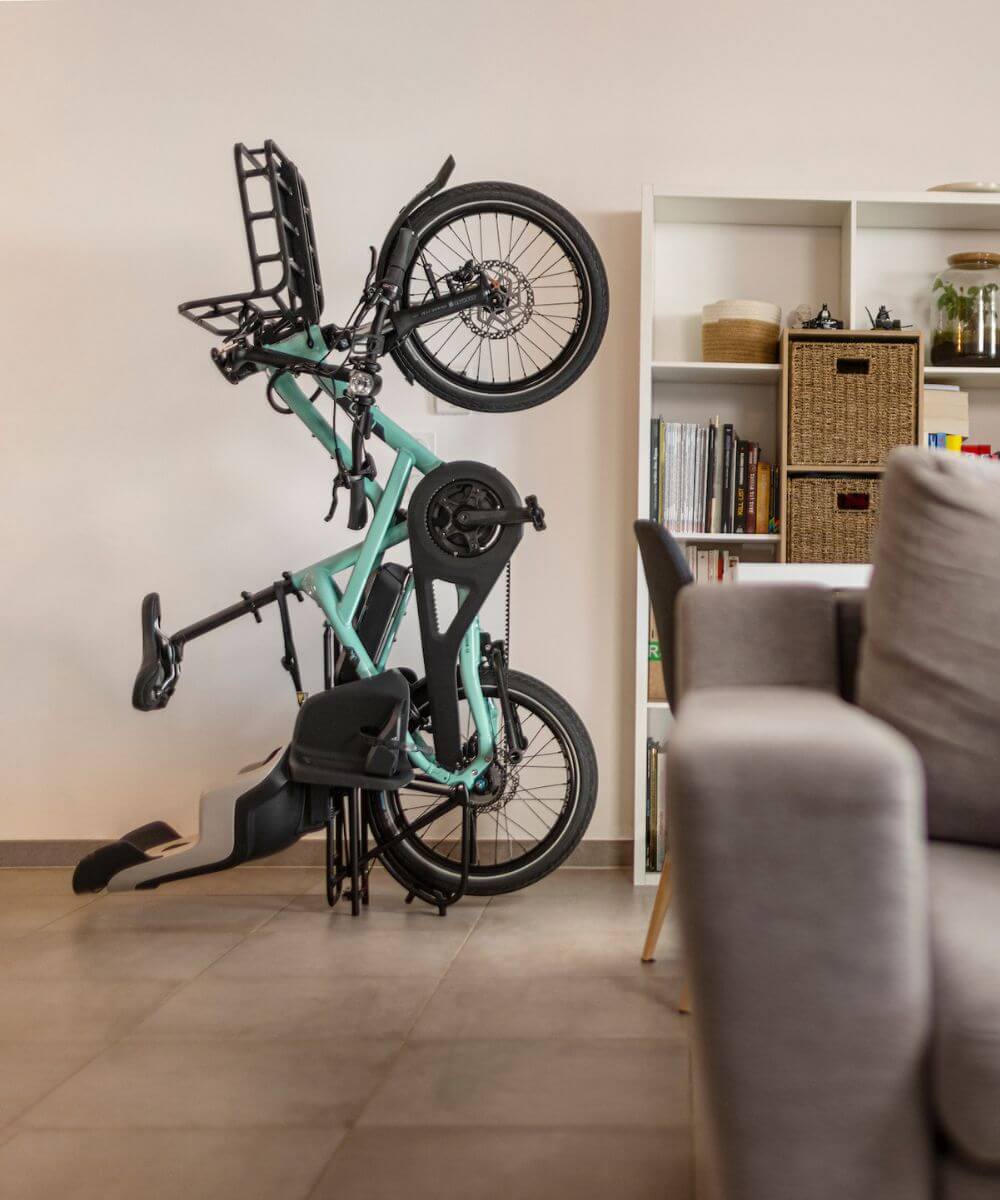

What sets the HSD P5i apart from bulkier longtail cargo bikes is that it still folds. In 5 seconds, it collapses to 166 × 42 × 87 cm (65.4 × 16.5 × 34.3 in), small enough to fit in a condo storage locker, an elevator, or the back of a car, without giving up the hauling capacity that makes it useful in the first place.
- FREE shipping within Canada on all our electric bikes.
- Each electric bike is meticulously assembled, tested and packed by our electric bike experts.
- Each electric bike is shipped 95% assembled.
- All ebikes are shipped in accordance to Transport Canada regulations. Our shippers are fully trained and certified.
*Note: Unfortunately, we may not be able to ship to all regions.
75Nm
Of Torque
135 Km's
Range Between Charges
340%
Pedal Assist
Discover The Tern HSD
24
Month Electronics Warranty
120
Month Frame Warranty
Bosch's eBike batteries are a long-lasting, efficient power source. With an extended range and intelligent BMS system to protect from overheating throughout the life cycle of each cell (even when not in use), these high-quality lithium-ion cells rank among the best on market! Not only do they come equipped with UL certification for safety but also provide an ergonomic design that makes them easy to recharge either on or off the bike as well.
Bosch Smart System chargers are handy, lightweight and robust. The housings are designed without vents to protect the chargers from dirt and grime.
All chargers are certified to UL 1012 & CSA 107.2. and can recharge a battery from empty in as little as 3.5hrs!
Just want a partial charge? Bosch ebike batteries can be charged even for a short time if desired, regardless of their charge level.
Bosch's eBike batteries are a long-lasting, efficient power source. With an extended range and intelligent BMS system to protect from overheating throughout the life cycle of each cell (even when not in use), these high-quality lithium-ion cells rank among the best on market! Not only do they come equipped with UL certification for safety but also provide an ergonomic design that makes them easy to recharge either on or off the bike as well.
Bosch Smart System chargers are handy, lightweight and robust. The housings are designed without vents to protect the chargers from dirt and grime.
All chargers are certified to UL 1012 & CSA 107.2. and can recharge a battery from empty in as little as 3.5hrs!
Just want a partial charge? Bosch ebike batteries can be charged even for a short time if desired, regardless of their charge level.
Tern HSD P5i
Technical Specifications
Please note that all product information, specifications, and data are subject to change without prior notice.
Tern HSD, 6061-AL, patented design, EN17860 certified: 190 kg
Tern Atlas H / Schwalbe Big Apple, 55-406, puncture protection, Reflex
5 speed
Shimano Nexus 5
Shimano Nexus 5

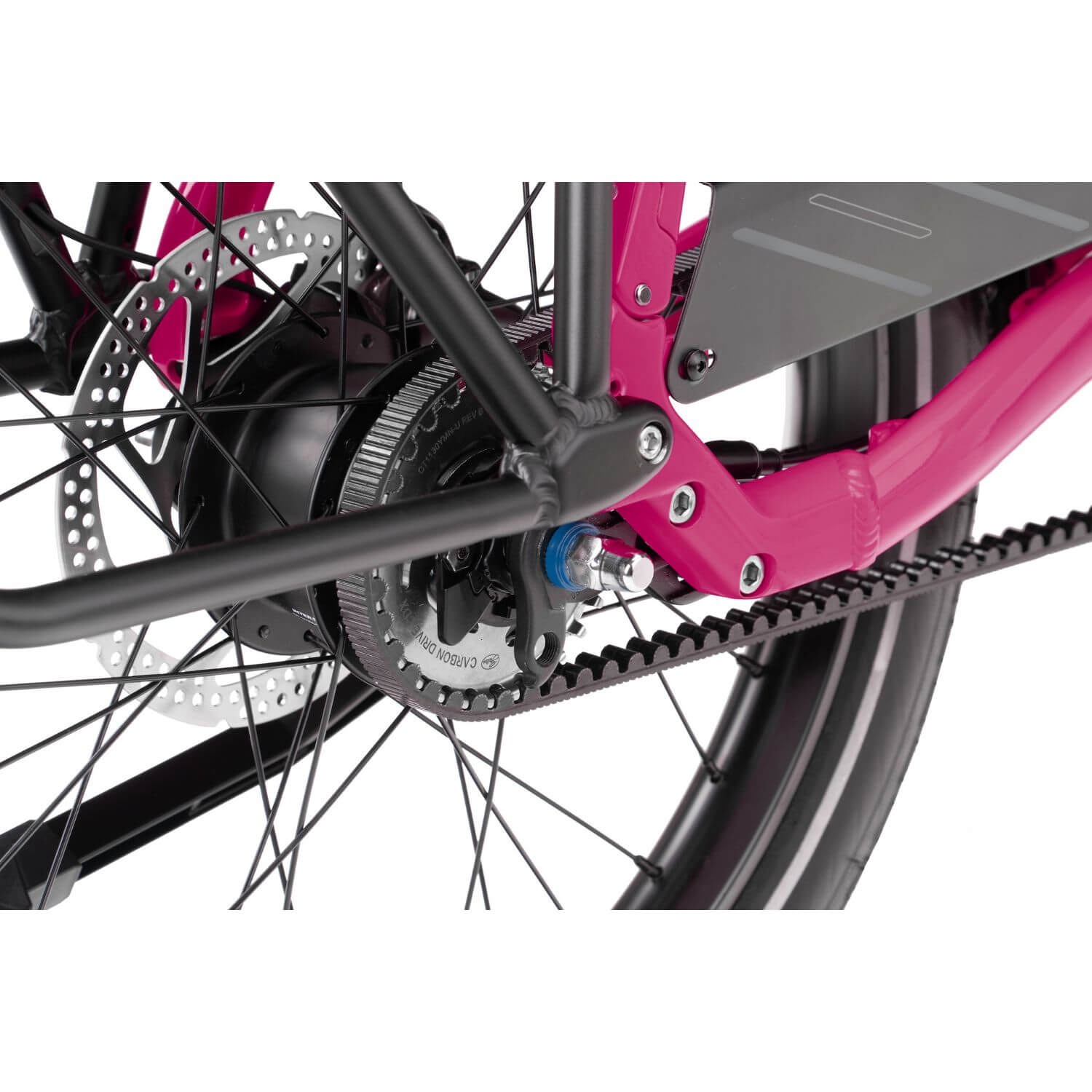

Gates CDX, precision CNC machined cog
Gates Carbon Drive CDX belt
Urban with non-slip surface
Tern Physis 3D, 3D forged, 5 patented technologies, 12°, 320 mm
Ergon
Tern Upright by Velo
Aluminum, stainless hardware
Tern Valo Direct, 190 lumens / Herrmans LED
Ursus, rear mount

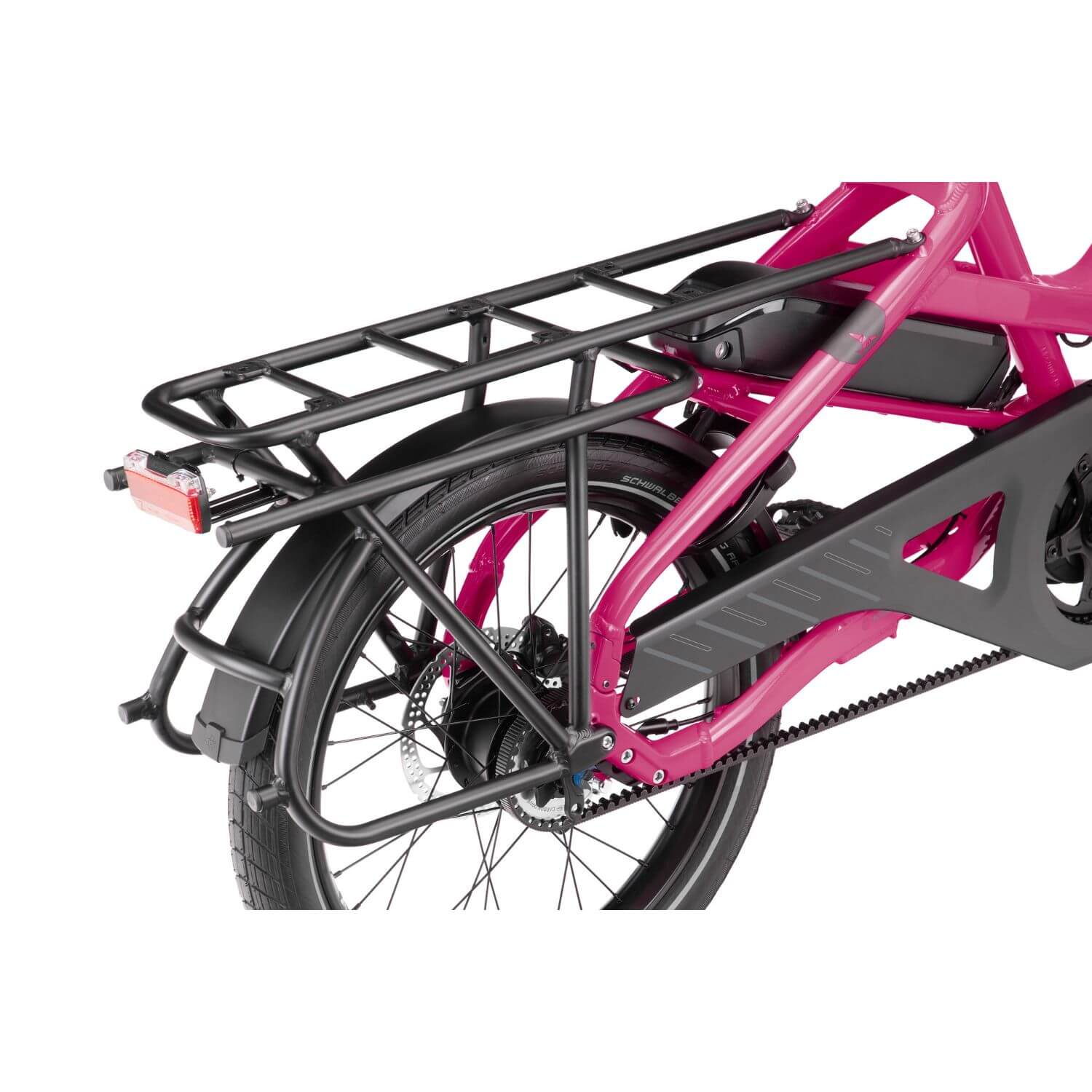

Atlas H rack, 6 point mounting, ISO 11243:2023 certification: 80 kg
28.1 kg (61.9 lb)
How To Use The Bosch Smart System
The latest system generation is the smart system, where every component is fully connected. Technically high-quality eBike components, enhanced with digital functions, enable a completely new eBiking feel with more flexibility, individuality, completely new riding experiences and more riding fun. Take advantage of new features, for example, in the area of theft protection and keep the components of your eBike up to date with updates over-the-air. The smart system combines the advantages of the Bosch eBike-system 2, and is also fully connected and continuously expanding - new products are added and new features developed. Are you ready for the influx of new possibilities?
The smart system is the beginning of a new kind of digital eBike future. In the latest system generation of Bosch eBike Systems, all components are fully interconnected. The eBike Flow app is the hub – through it, you constantly get new features for your eBike. You can simply transfer updates for your components via Bluetooth. This way, your eBike always remains up to date and is continuously enhanced after purchase.
Enhance the security of your eBike with the added benefit of free eBike theft protection: eBike Lock. Simply install the eBike Lock function once through your eBike Flow app. Once activated, it verifies the proximity of your smartphone via Bluetooth before enabling motor support. Indications of the automatic theft protection system include audible signals from the drive unit and visual symbols on the LED Remote, display, or smartphone. By deterring theft and resale, eBike Lock effectively safeguards your eBike.
Make it difficult for thieves: Download the eBike Flow app, subscribe to Flow+ and activate the eBike Alarm premium service. You stay connected to your eBike via your smartphone and can track the location of your eBike thanks to ConnectModule (sold separately). So you can relax when you park your eBike.
The latest system generation is the smart system, where every component is fully connected. Technically high-quality eBike components, enhanced with digital functions, enable a completely new eBiking feel with more flexibility, individuality, completely new riding experiences and more riding fun. Take advantage of new features, for example, in the area of theft protection and keep the components of your eBike up to date with updates over-the-air. The smart system combines the advantages of the Bosch eBike-system 2, and is also fully connected and continuously expanding - new products are added and new features developed. Are you ready for the influx of new possibilities?
The smart system is the beginning of a new kind of digital eBike future. In the latest system generation of Bosch eBike Systems, all components are fully interconnected. The eBike Flow app is the hub – through it, you constantly get new features for your eBike. You can simply transfer updates for your components via Bluetooth. This way, your eBike always remains up to date and is continuously enhanced after purchase.
Enhance the security of your eBike with the added benefit of free eBike theft protection: eBike Lock. Simply install the eBike Lock function once through your eBike Flow app. Once activated, it verifies the proximity of your smartphone via Bluetooth before enabling motor support. Indications of the automatic theft protection system include audible signals from the drive unit and visual symbols on the LED Remote, display, or smartphone. By deterring theft and resale, eBike Lock effectively safeguards your eBike.
Make it difficult for thieves: Download the eBike Flow app, subscribe to Flow+ and activate the eBike Alarm premium service. You stay connected to your eBike via your smartphone and can track the location of your eBike thanks to ConnectModule (sold separately). So you can relax when you park your eBike.
Bosch eBike Flow App
Step 1
Download the eBike Flow from the App Store or Google Play Store and install it.
Step 2
Launch the app and register your Flow account using your SingleKey ID.
Step 3
Connect your eBike to the eBike Flow app. Now you're ready to use your eBike.
Step 4
Upgrade to Flow+ for enhanced eBike Alarm theft protection.
